Roger Warin
Joined: 23 Jan 2013
Posts: 1179
|
Posted: Sep 23, 2013 10:16 Post subject: Collection of Giuseppe Cesàro (1849 - 1939) |
|
|
Giuseppe Raimondo Pio Cesàro
Naples 1849 - Comblain-au-Pont (Liège) 1939.
Cesaro was professor of crystallography and mathematics at the Liège University (Belgium) in 1895. He succeeded Gustave Dewalque.
He was also the tutor of mathematics of the future King Leopold III.
He was a friend of Alfred Lacroix (MNHN Paris), Georges Friedel (University of Strasbourg), vom Rath (University of Bonn) ...
He was a great crystallographer. He discovered (1887) the isocelohedron "L" (or hexagonal dipyramid) on calcite crystals of Rhisnes mine, very rare as dominant form for this mineral.
Roger.

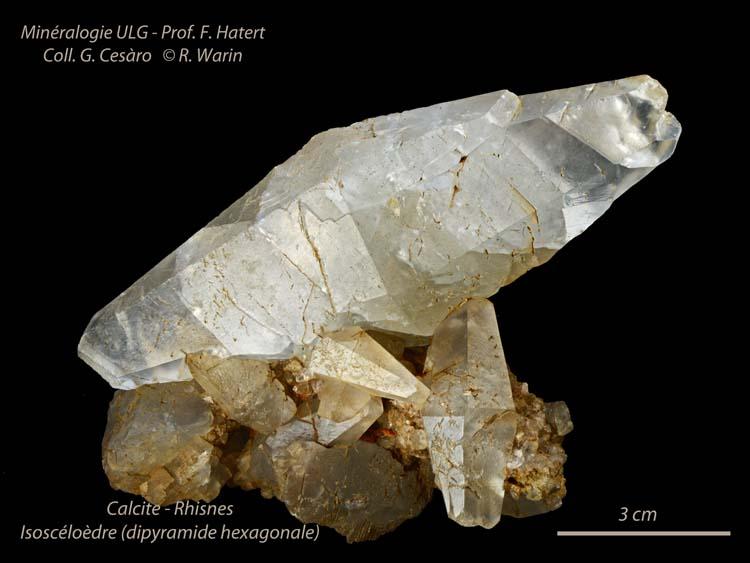

Description: |
Calcite Rhisnes, Namur Prov., Belgium 11 cm wide Dipyramid L {88.3} (dominant) Rhombohedron {10.1} (top) |
|
Viewed: |
20889 Time(s) |
|
|
|
Back to top |
|
|
Jordi Fabre
Overall coordinator of the Forum
Joined: 07 Aug 2006
Posts: 4904
Location: Barcelona
|
Posted: Sep 23, 2013 10:44 Post subject: Re: Collection of Giuseppe Cesàro (1849 - 1939) |
|
|
Dear Roger,
I love this thread as well as the other thread: Collection of H. UNGEMACH (1882 - 1936). You are doing a great job retrieving our patrimony, the mineralogical memory.
Please more!
_________________ Audaces fortuna iuvat |
|
Back to top |
|
|
Roger Warin
Joined: 23 Jan 2013
Posts: 1179
|
Posted: Sep 23, 2013 16:17 Post subject: Re: Collection of Giuseppe Cesàro (1849 - 1939) |
|
|
This message is especially for beginners.
Rhisnes is a magical place for the crystallographer. Fortunately, a great crystallographer, Cesàro, was present. Otherwise all these limestones have ended their lives in a lime kiln. This happened in the late 80s (in the 19th century).
Nature not only gave its hexagonal dipyramide in Rhisnes quarry but also several generations of growth have modified the crystals of calcite.
Thus, it is very often a second crystal grows on the first. While most of the time, this second crystallization is deposited randomly on the crystal, in this case, it is built on the foundations of the first. The plans of the Great Architect (Nature) have been met. In other words, the lattice remains unique. We have only one crystal. We say in this case that the growths are made along parallel axes.

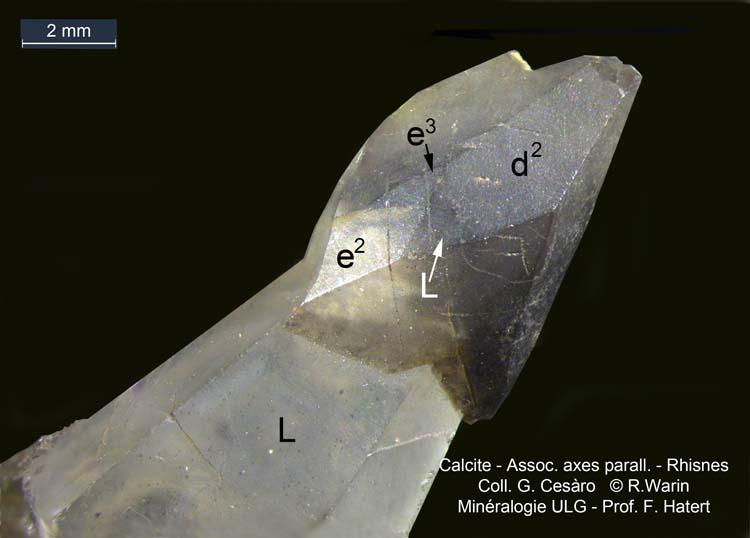

Let us describe the specimen pic.
The primary crystal is a hexagonal dipyramid L {88.3}.
Then a second crystal is grafted. This one is a classic calcite composed of d2 {21.1} forms, i.e. the usual scalenohedron. This is modified by the e2 {10.0} prism, by the rhombohedron e3 {40.1} and also by L.
This photo shows a parallel growth.
Roger.
Description: |
Calcite Rhisnes, Namur Prov., Belgium parallel growth on hexagonal dipyramid |
|
Viewed: |
20744 Time(s) |
|
|
|
Back to top |
|
|
Roger Warin
Joined: 23 Jan 2013
Posts: 1179
|
Posted: Sep 23, 2013 23:27 Post subject: Re: Collection of Giuseppe Cesàro (1849 - 1939) |
|
|

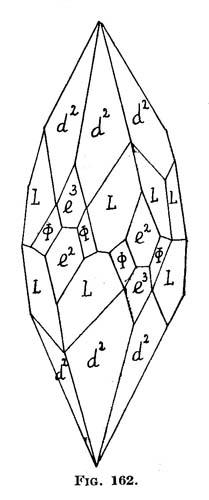

About the second crystallization, we can see a Buttgenbach’s drawing of a similar calcite from Rhisnes, except that the form Φ {25 8 -25 3} is absent.
Ref.: H. Buttgenbach, Les Minéraux de Belgique et du Congo belge (1947).
When hexagonal dipyramids (as L) are secondary forms poorly marked, they are more difficult to identify without goniometric measurement.
Roger.
Description: |
Calcite Rhisnes - Namur Prov., Belgium Drawing of the 2d Crystal (photo) |
|
Viewed: |
20675 Time(s) |
|
|
|
Back to top |
|
|
Roger Warin
Joined: 23 Jan 2013
Posts: 1179
|
Posted: Sep 25, 2013 06:19 Post subject: Re: Collection of Giuseppe Cesàro (1849 - 1939) |
|
|

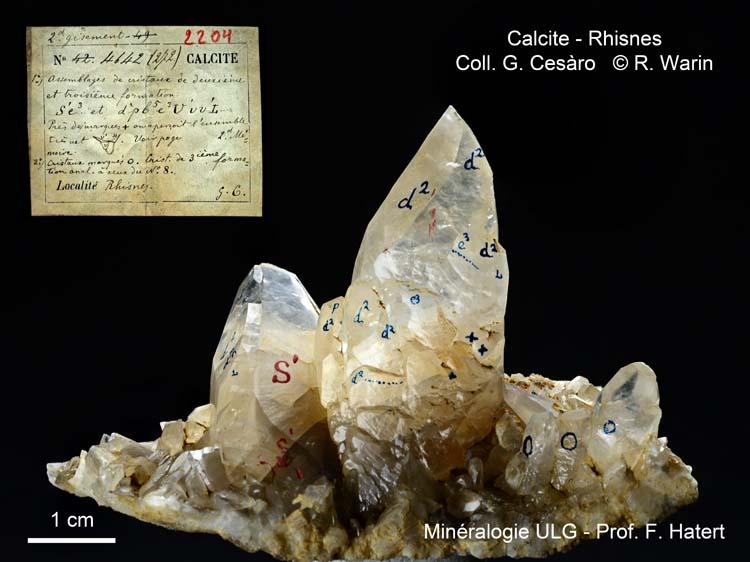

This aesthetic group of calcite (Rhisnes) was studied by Cesàro.
You can admire the thoroughness of Cesàro, witness of a lost past.
A priori, this set is trivial, yet analysis yields amazing results.
It results from the assembly of three successive crystalline formations. A large variety crystallographic forms in calcite is possible.
Calcite is probably the mineral that can be modified by the largest number of forms. There are even exceptional Miller indices with values that appear in opposition to the rule of Miller’s rationality of indices.
PS: The letters correspond to the Haüy-Levy’s notation.
L : {8 8 . 3}
p : {10.1}
d2 : {21.1}
e3 : {40.1}
S’ : {19 10 . 6}
b5 : {41.6}
U’: {33 5 . 1}
u : {62.1}
u’ : {62.1}
The label is a report.
Roger.
Description: |
Calcite Rhisnes, Namur Prov., Belgium 3 generations |
|
Viewed: |
20520 Time(s) |
|
|
|
Back to top |
|
|
Martin Rich
Joined: 15 Aug 2013
Posts: 127
Location: Lower Austria
|
Posted: Sep 25, 2013 19:14 Post subject: Re: Collection of Giuseppe Cesàro (1849 - 1939) |
|
|
Roger Warin wrote: | ....calcite from Rhisnes, except that the form Φ {25 8 -25 3} is absent....
Roger. |
Roger, I love Calcite, crystallography and historical specimens! I read this thread with interest.
One question: should Φ in Miller indices conform with {25 8 -33 3}?
Martin
_________________ We are living on the matrix. |
|
Back to top |
|
|
Roger Warin
Joined: 23 Jan 2013
Posts: 1179
|
Posted: Sep 26, 2013 00:25 Post subject: Re: Collection of Giuseppe Cesàro (1849 - 1939) |
|
|
Dear Martin
Of course the third indice is -28. My finger must have slipped on the numeric pad and as my sight is failing a bit, I have not seen this error.
Sorry for the mistake. Thank you for the report.
I like to illustrate by photos some basic facts that were taught to me at the university there very long.
As I have the opportunity to perform a photographic update of the collection of the Liege Mineralogy Lab, I found the specimens studied by Cesaro, Levy, Ungemach, Buttgenbach, Melon ... Surprises are great when sometimes the mineral is very small then the drawing in the textbooks is 5 or 10 cm wide.
Roger.
|
|
Back to top |
|
|
Roger Warin
Joined: 23 Jan 2013
Posts: 1179
|
Posted: Sep 28, 2013 10:47 Post subject: Re: Collection of Giuseppe Cesàro (1849 - 1939) |
|
|
Hi,
Still a short lesson for the beginner, with a specimen of the ULG museum.

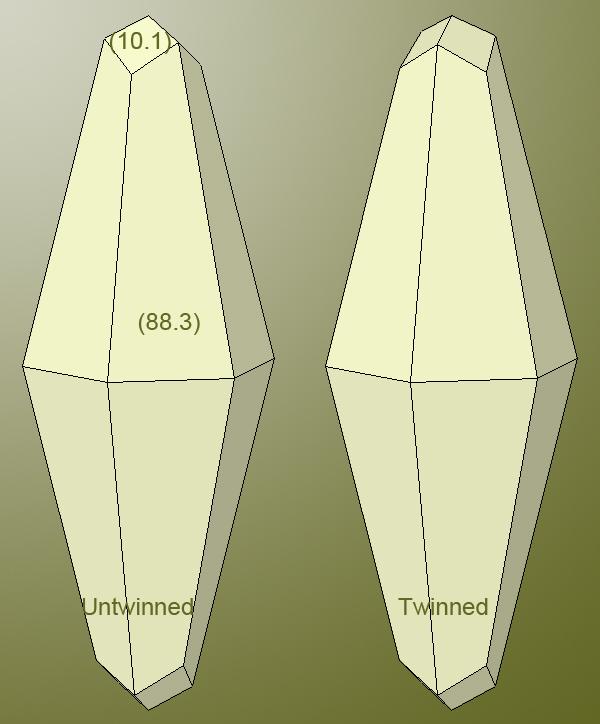

A hexagonal dipyramid can have only a trigonal symmetry. This is the case of calcite. The crystal class has a threefold axis vertical. It is for this reason that the endings are often rhombohedra. The crystal is based on a rhombohedral lattice. There is no mirror plane perpendicular to the 3-fold axis (the 3-fold rotoinversion axis).
The calcite crystal photographed shows the main form (hexagonal dipyramid) terminated by the rhombohedral {10.1}.
In a non-twinned crystal, so there is no horizontal mirror plane.
But in the twinned crystal, it appears a typical upper symmetry of the twin. The composition plane is horizontal and it becomes a pseudo-plane of symmetry. The upper part is symmetrical versus the lower.
The cleavage planes will be reflected in the mirror. In addition, the upper rhombohedral termination also becomes symmetrical to the bottom one.
This is the case of this Rhisnes calcite (L {88.3} and {10.1}).
A note on the label, it says "hémitropie sur a1." This is an old French word to emphasize the twin on (00.1).
Definition of hemitropy: Special crystals consist of two halves joined together regularly, but reversed from their normal position, as if one had made a half turn on each other.
Roger.
Description: |
Calcite Rhisnes - Namur Prov., Belgium Twinned hexagonal dipyramid |
|
Viewed: |
20172 Time(s) |
|
Description: |
|
Viewed: |
20146 Time(s) |
|
|
|
Back to top |
|
|
Roger Warin
Joined: 23 Jan 2013
Posts: 1179
|
Posted: Jan 28, 2014 17:22 Post subject: Re: Collection of Giuseppe Cesàro (1849 - 1939) |
|
|
Hello,
Giuseppe Cesàro was a Belgian crystallographer of Italian origin (1849-1939). Reached in Liege 18 y. old, he was professor of crystallography at the University of Liège from 1891 to 1921. His scientific work was well known and he performed an important role during the birth of the “Union Minière du Haut Katanga” (Congo) (actually Umicore group) with his disciple Henri Buttgenbach.

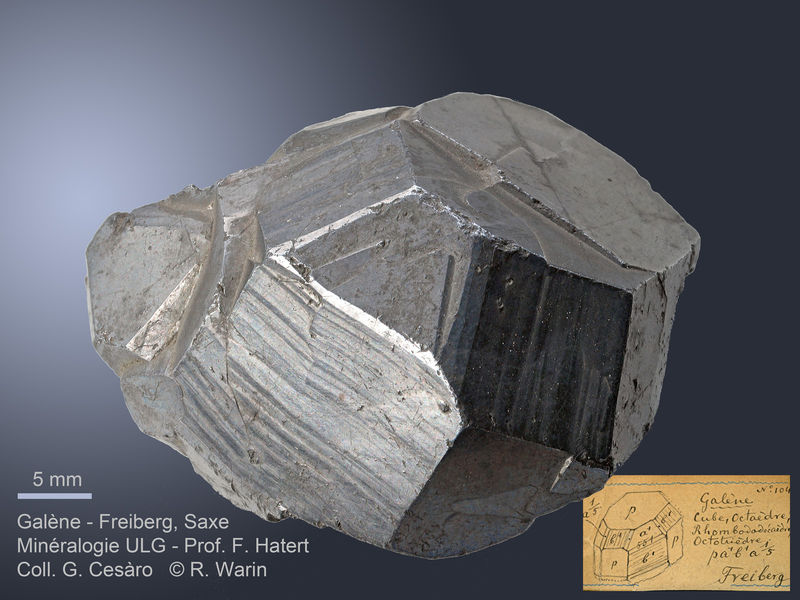

He studied this remarkable galena from Freiberg (Saxony) and there he has discovered a new crystal form, the {551} trioctahedron.
Roger.
Description: |
Galena Freiberg, Saxe, Germany 4.3 cm Discovery of the {551} trioctahedron. |
|
Viewed: |
19015 Time(s) |
|
Description: |

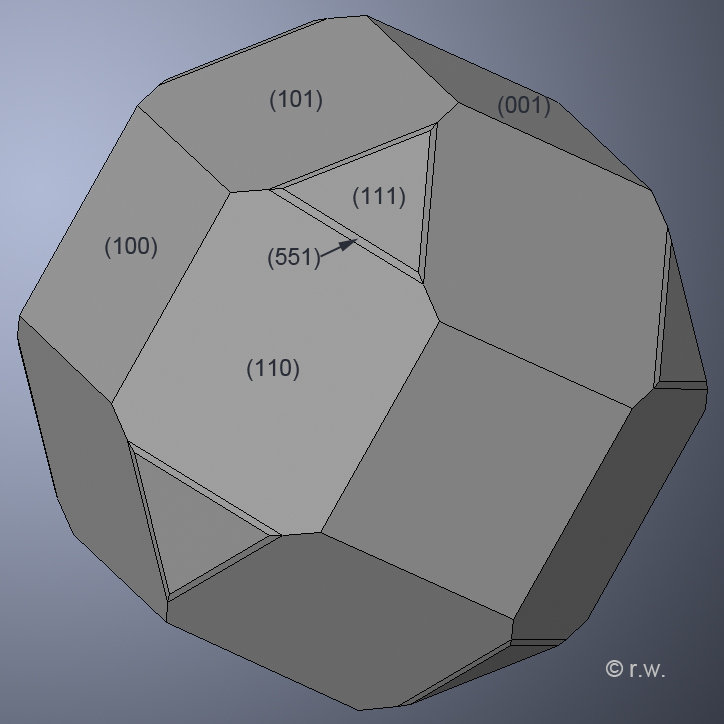

Galena Freiberg, Saxe, Germany Drawing of this galena # 104 |
|
Viewed: |
18891 Time(s) |
|
|
|
Back to top |
|
|
Roger Warin
Joined: 23 Jan 2013
Posts: 1179
|
Posted: Feb 10, 2014 04:55 Post subject: Re: Collection of Giuseppe Cesàro (1849 - 1939) |
|
|

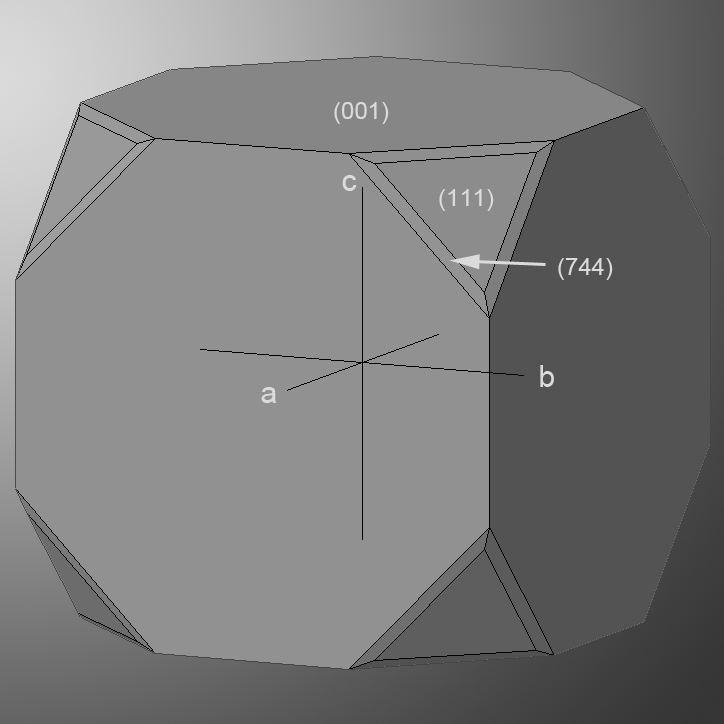

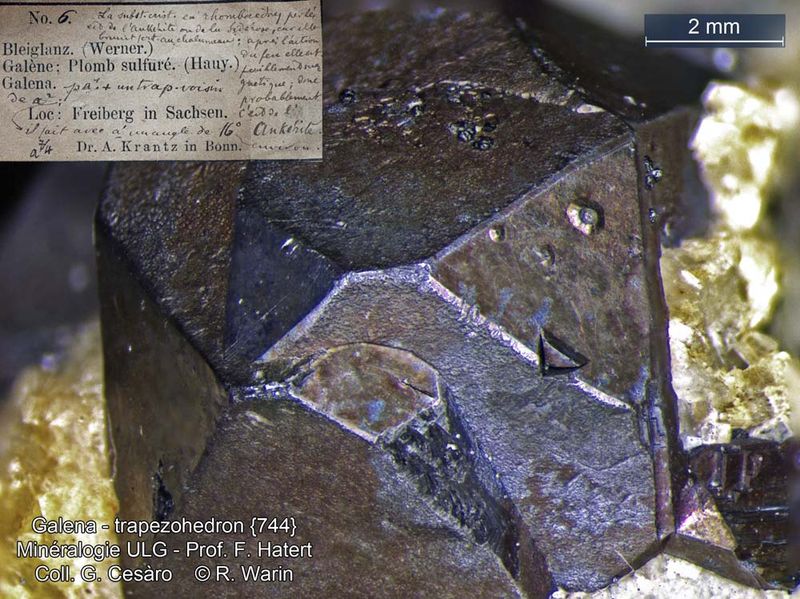

Galena # 3296
An exotic trapezodron in galena from Freiberg (Saxony).
{001}, {111}, {744}.
Roger.
Description: |
Galena Freiberg, Saxony, Germany Unusual trapezoherdon {744} |
|
Viewed: |
18740 Time(s) |
|
Description: |
Galena Freiberg, Saxony, Germany |
|
Viewed: |
18726 Time(s) |
|
Description: |
Galena Freiberg, Saxony, Germany |
|
Viewed: |
18881 Time(s) |
|
Description: |
|
Viewed: |
18739 Time(s) |
|
|
|
Back to top |
|
|
Roger Warin
Joined: 23 Jan 2013
Posts: 1179
|
Posted: Feb 22, 2014 16:56 Post subject: Re: Collection of Giuseppe Cesàro (1849 - 1939) |
|
|
Hi,
Galena pseudomorph of pyromorphite.
Kautenbach mine near Bernkastel, Rhineland-Palatinate, Germany.
Roger.
Description: |
Galena Kautenbach Mine, Bernkastel, Rhineland-palatinate, Germany 23 mm galena pseudomorph of pyromorphite. |
|
Viewed: |
18561 Time(s) |
|
|
|
Back to top |
|
|
Tobi
Site Admin
Joined: 07 Apr 2009
Posts: 4112
Location: Germany
|
Posted: Feb 23, 2014 04:09 Post subject: Re: Collection of Giuseppe Cesàro (1849 - 1939) |
|
|
I really enjoyed the last two German galenas from Freiberg (wonderful matrix specimen) and from Kautenbach Mine! The last one (called "Blaubleierz" in German, meaning "blue lead ore") is a really fine one. I actually don't like pseudomorphs (please don't hate me for saying this), but those hexagonally looking galenas are the only pseudomorph i would like to have in my collection :-)
|
|
Back to top |
|
|
Roger Warin
Joined: 23 Jan 2013
Posts: 1179
|
Posted: Feb 23, 2014 13:46 Post subject: Re: Collection of Giuseppe Cesàro (1849 - 1939) |
|
|
Me too, Tobi.
These pseudomorphs don't come from Freiberg.
Roger.
|
|
Back to top |
|
|
Tobi
Site Admin
Joined: 07 Apr 2009
Posts: 4112
Location: Germany
|
Posted: Feb 23, 2014 14:05 Post subject: Re: Collection of Giuseppe Cesàro (1849 - 1939) |
|
|
Roger Warin wrote: | Me too, Tobi.
These pseudomorphs don't come from Freiberg.
Roger. |
I know, that's why i said "i really enjoyed the last TWO German galenas from Freiberg AND from Kautenbach Mine ;-)
Tobi
|
|
